Evaluation kits for our NDIR OCIEngine and OCIEngine PRO gas sensors

Our Evaluation Kits are designed to help engineers, researchers and developers evaluate the performance of our NDIR sensors and integrate them into specific applications.

Description

The Evaluation Kit provides users with a comprehensive solution for assessing the performance of the OCIEngine gas sensor, particularly aiding them in the pre-integration phase.

It consists of a hardware box housing the OCIEngine sensor and the “OCIScope” software for communication with the sensor. The software includes features such as OCIEngine sensor display, data plotting and data backup.

The kit is delivered with jack DC to USB-A adapter and RS232 to USB-A adapter.

Technical specifications

SAMPLING CHARACTERISTICS
Air connectionTubing Outside Diameter: 4mm
ELECTRICAL
Supply voltageJack 2.1 mm 5V DC +/-0.5V
Communication interfaceRS232 protocol
Input current1,5 A max
ENVIRONMENTAL CONDITIONS
Operating conditionsFrom 0°C to 50°C
StorageFrom -10°C to 70°C
PACKAGE INFORMATIONS
Dimensions and weight92 x 76 x 54 mm, 110g
External casingPlastic
SOFTWARE INFORMATIONS
CompatibilityFrom Windows 10



ociengine_ndir_gas_sensor

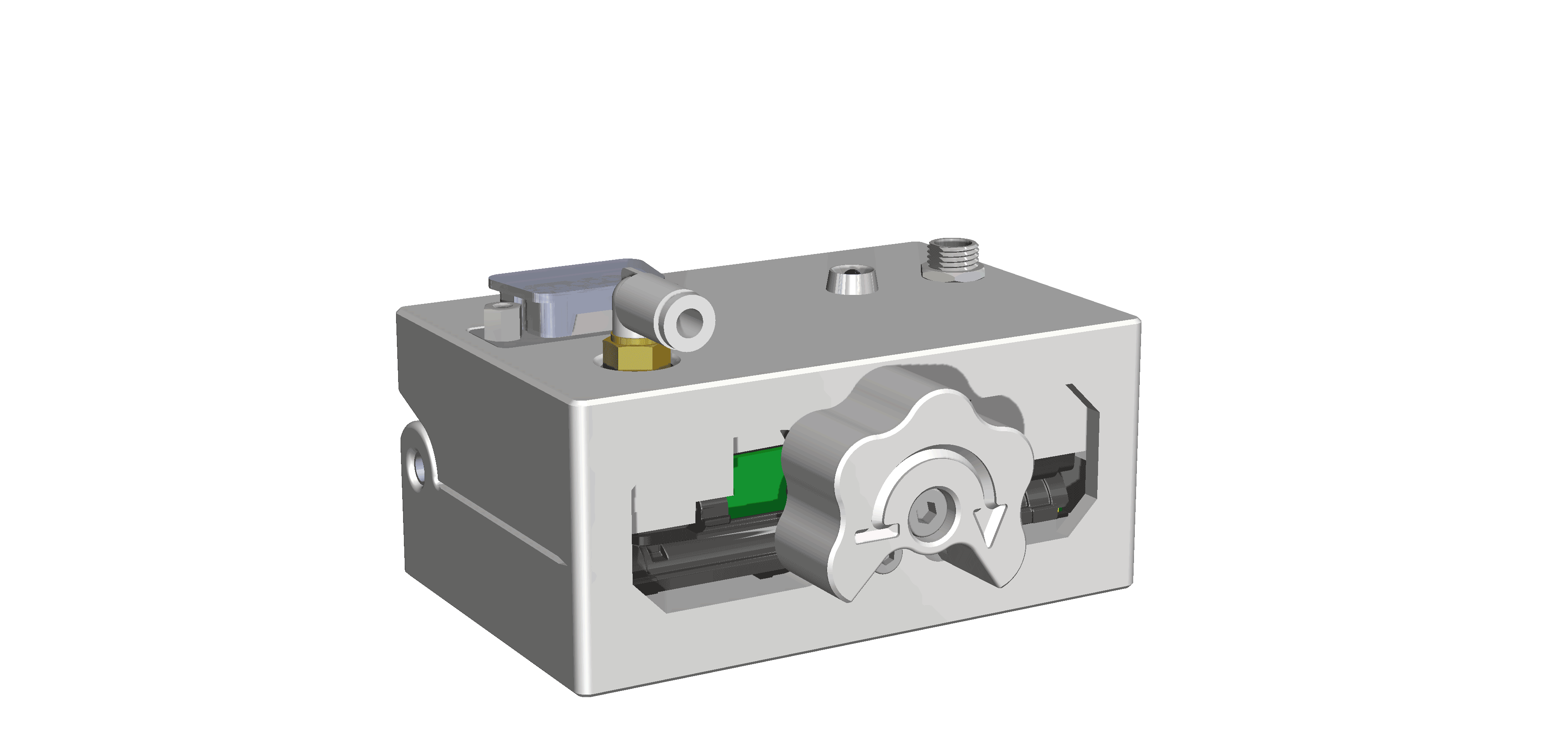

Evaluation kit architecture

Mechanical drawings

Description

The Evaluation Kit provides users with a comprehensive solution for assessing the performance of the OCIEngine PRO gas sensor, particularly aiding them in the pre-integration phase.

It consists of a hardware box housing the OCIEngine PRO sensor and the “OCIScope” software for communication with the sensor. The software includes features such as OCIEngine PRO sensor display, data plotting and data backup.

The kit contains an OCIEngine PRO Sensor, a pipe connector, a screwdriver for the assembly, a RS232 to USB-A adaptater and a user guide. A battery and a pump are also comprise inside the box.

Technical specifications

SAMPLING CHARACTERISTICS
Air connection Tubing Outside Diameter: 4mm
ELECTRICAL
Supply voltage USB-C 5V DC +/-0.5V
Communication interface RS232 protocol
Input current 1,5 A max.
Battery capacity 5000 mAh
PUMP
Max. flow 0,6 L/min
ENVIRONMENTAL CONDITIONS
Operating conditions From 0°C to 50°C
Storage From -10°C to 70°C
PACKAGE INFORMATIONS
Dimensions and weight 180 x 124 x 71 mm, 1,3kg
External casing Aluminium and plastic (ASA+PC)
SOFTWARE INFORMATIONS
Compatibility From Windows 10
ociengine_ndir_gas_sensor

Evaluation kit architecture

Mechanical drawings
